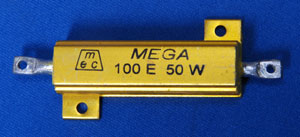

'MEGA' HEAT SINK POWER RESISTORS : TYPE MHPR | ||
|
Watts |
Specifications | Range | |
| 25 | 28X28 mm | 0 E 001 to 25 K | |
| 50 |
28X50 mm |
0 E 001 to 50 K | |
|
PHYSICAL DIMENSIONS | ||||||||
| Dimensions
in mm TOLERANCE: + 0.5 mm |
|||||||||
| Ratings at 250C |
A | B | C | D | E | F | G | H | |
| 25 Watts | 18.3 | 19.8 | 27 | 14 | 15.2 | 28 | 2.2 | 3.2 | |
| 50 Watts | 39.6 | 21.4 | 50 | 16 | 15.2 | 28 | 2.2 | 3.2 | |
